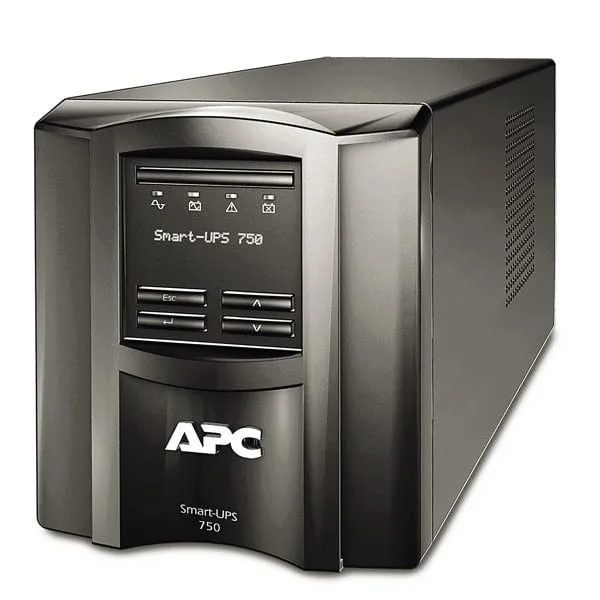

APC Smart-UPS 750VA LCD 230V (SMT750IC)
APC Smart-UPS 750VA LCD 230V (SMT750IC) - Image 2

APC Smart-UPS 750VA LCD 230V (SMT750IC)

APC Brand Kenya
Availability:

In Stock

  • The APC Smart-UPS SMT Series offers guaranteed battery backup and surge protection for servers, switches and networking devices.
  • max. Output 750 VA / 500 Watts – Pure sine wave output on battery. Tower model
  • One switchable outlet group for individual load management – “SmartSlot” for network management card (optional)
  • LCD interface with intuitive navigation keys -provides clear, accurate information in multiple language options
  • Content of delivery: Smart UPS SMT User manual USB Cable Shutdown Software

Click to See Manufacturer Specifications here



Payment Options

Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
NB: Prices are subject to change without notice

APC Smart-UPS 750VA LCD 230V (SMT750IC)

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Smart UPS signalling RS-232 cable, USB cable
  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Energy meter
    Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utility costs, generates less heat.
  • Intuitive LCD interface
    Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date
    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • SmartSlot
    Customize UPS capabilities with management cards.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.
Category: Tags: , , ,
Brand

Technical Specifications
Output
Max Configurable Power (Watts)                                  500Watts / 750VA
Output Voltage Distortion                                               Less than 5%
Output Frequency (sync to mains)                                 50/60Hz +/- 3 Hz
Other Output Voltages                                                     220, 240
Topology                                                                             Line Interactive
Waveform type                                                                  Sine wave
Transfer Time                                                                   6ms typical : 10ms maximum
Input
Input frequency                                                                 50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations                         160 – 280V
Input voltage adjustable range for mains operation       151 – 302V
Number of Power Cords           1
Other Input Voltages                                        220, 240
Batteries & Runtime
Battery type           Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time           3hour(s)
Replacement Battery       RBC48
Expected Battery Life (years)      3 – 5
RBC Quantity               1
Battery Charge Power (Watts)                     49Watts
Battery Volt-Amp-Hour Capacity                146
Communications & Management
Interface Port(s)                    SmartSlot, USB
Control panel                         Multi-function LCD status and control console
Audible Alarm                       Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)        Optional
Available SmartSlot™ Interface Quantity      1
Surge Protection and Filtering
Surge energy rating             540Joules
Filtering        Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height             161MM, 16.1CM
Maximum Width              138MM, 13.8CM
Maximum Depth              369MM, 36.9CM
Net Weight                        11.8KG
Shipping weight                14.23KG
Shipping Height                301MM, 30.1CM
Shipping Width                278MM, 27.8CM
Shipping Depth                499MM, 49.9CM
Color                                  Black
Units per Pallet                 24.0
Environmental
Operating Temperature                                     0 – 40 °C
Operating Relative Humidity                             0 – 95 %
Operating Elevation                                            0-3000meters
Storage Temperature                                         -15 – 45 °C
Storage Relative Humidity                                  0 – 95 %
Storage Elevation                                                  0-15000meters
Audible noise at 1 meter from surface of unit   40.0dBA
Online thermal dissipation                                   90.0BTU/hr
