Specifications for ME-3000-VU

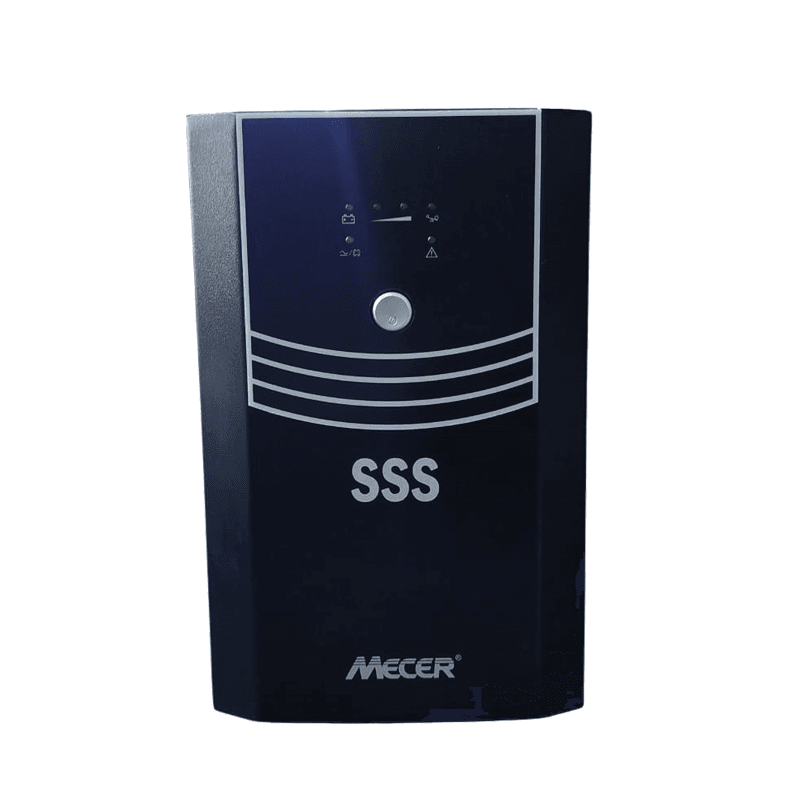

Mecer 3000VA OFF-LINE UPS

Mecer 3000VA OFF-LINE UPS, with AVR, Monitoring Software + Cable, Builtin Surge Protection, Black, No Power cable included. Requires CAB-C19

Features
 Excellent microprocessor control guarantees high reliability
 Boost and buck AVR for voltage stabilization
 Auto restart while AC is recovering
 Simulated sine wave
 Off-mode charging
 Cold start function
Specifications
Model Vesta 3K
 Colour
o Black
 Capacity
o 3000VA / 1800W
INPUT
 Voltage
o 110/120 VAC or 220/230/240 VAC
 Voltage Range
o 81-145 VAC / 162-290 VAC
 frequency Range
o 60/50 Hz (auto sensing)
OUTPUT
 Output Voltage
o 110/120 VAC or 220/230/240 VAC
 AC Voltage Regulation (Batt. Mode)
o +-10%
 Frequency Range (Batt. Mode)
o 60Hz or 50Hz ± 1 Hz
 Transfer Time
o Typical 2-6 ms, 10ms max.
 Waveform (Batt. Mode)
o Simulated Sine Wave
BATTERY
 Battery Type & Number
o 12 V/9 AH x 4
 Typical Recharge Time
o 4-6 hours recover to 90% capacity
INDICATORS
 AC Mode
o Green lighting
 Battery Mode
o Yellow flashing
 Fault
o Red lighting
PROTECTION
 Full Protection
 Overload, discharge, and overcharge protection
ALARM
 Battery Mode
o Sounding every 10 seconds
 Low Battery
o Sounding every second
 Overload
o Sounding every 0.5 second
 Battery Replacement Alarm
o Sounding every 2 seconds
 Fault
o Continuously sounding
PHYSICAL
 Dimension, D x W x H (mm)
o 495 x 150 x 250
 Net Weight (kgs)
o 24.8
OPERATING ENVIRONMENT
 Humidity
o 0-90 % RH @ 0- 40°C (non-condensing)
 Noise Level
o Less than 40dB
MANAGEMENT
 Supports Windows® 2000/2003/XP/Vista/2008/7,
 Linux, Unix, and MAC
