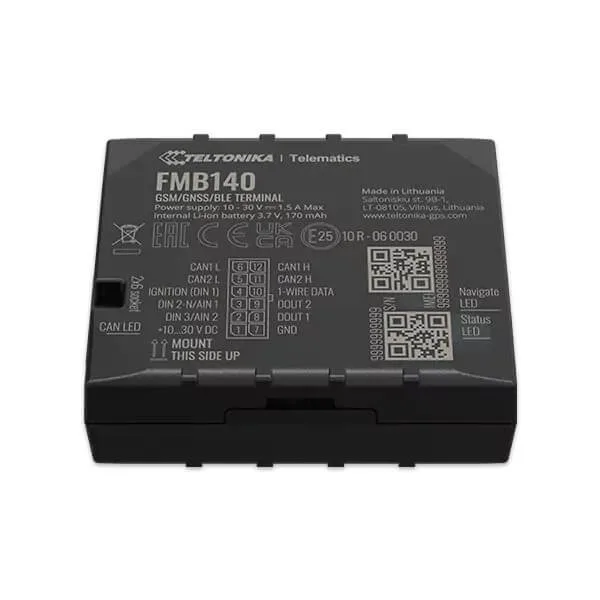

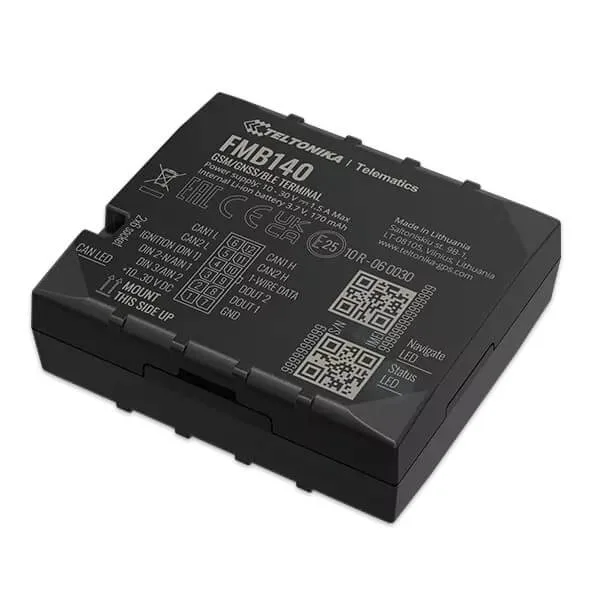

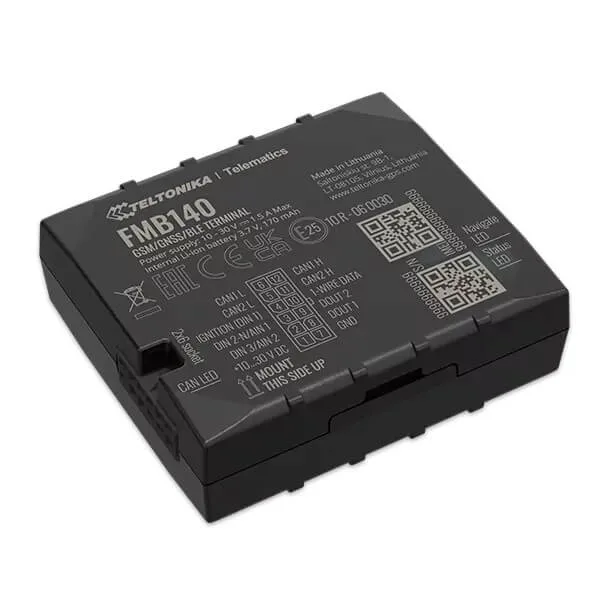

Teltonika FMB140 GPS tracker

Teltonika
Availability:

In Stock


Key Features

  • CAN data reading from light vehicles, buses, coaches, and trucks
  • Real fuel consumption and level, full mileage, engine temperature, and more
  • CAN data reading from agriculture and special transport*
  • Bluetooth for external devices and Low Energy sensors
  • Configurable DIN/AIN for flexible remote monitoring and control
  • Negative input will allow easier installation of accessories
Payment Options

Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
NB: Prices are subject to change without notice

KShs 16,500.00 KShs 20,000.00 VAT exclusive

In Stock

Teltonika FMB140 GPS tracker in Nairobi Kenya

Are you looking for a simple solution to minimize OPEX in your fleet? Now you can get fuel consumption and level without the need to install additional sensors with the Teltonika FMB140 GPS tracker available in our shop at a very affordable price in Nairobi Kenya. It is capable of CAN data reading from light vehicles, buses, coaches, and trucks. Has very high-level GPS location accuracy for fleet management.

FMB140 is an ADVANCED GSM/GNSS/Bluetooth tracker with an integrated CAN data processor. It is a compact 2 in 1 solution: GPS tracker and CAN adapter inside! The device allows to read CAN data from a wide range of various vehicles, including light & electric vehicles, trucks, buses, and special machinery. Depending on the exact software version FMB140 can be used in advanced applications as heavy logistics, delivery services, utility transport. Two options are available to fulfill any business demands:

LV-CAN200 option – default software version with LV-CAN200 parameters, including fuel level, consumption, odometer, CAN speed, pedal position, Supported vehicle types: light vehicles, trucks, buses.
ALL-CAN300 option* – advanced software version allows reading more parameters than default version. Available additional parameters include AdBlue level, engine lifetime, airbag. Supported vehicle types: light vehicles, trucks, buses + electric vehicles, agriculture, construction, forest, utility & special machinery.

FMB140 supports Bluetooth 4.0 LE protocol, which lets you connect various external devices and Bluetooth low energy sensors. The new device is a major improvement for telematics with easier installation and flexibility to choose the proper set of features without a change of hardware.

Brand

MODULE
NameTeltonika FMB140
TechnologyGSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
ReceiverTracking: 33
Tracking sensitivity-165 dBM
Accuracy< 2.5m CEP
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
CELLULAR
TechnologyGSM
2G bandsQuad-band 850 / 900 / 1800 / 1900 MHz
Data transferGPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data supportSMS (text/data)
POWER
Input voltage range10 – 30 V DC with overvoltage protection
Internal Back-up battery170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification4.0 + LE
Supported peripheralsTemperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions65 x 56,6 x 20,6 mm (L x W x H)
Weight55 g
OPERATING ENVIRONMENT
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP41
Battery charge temperature-0 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
INTERFACE
Digital Inputs3
Negative Inputs1 (Digital Input 2)
Impulse Inputs2 (Digital Input 1, Digital Input 2)
Digital Outputs2
Analog Inputs2
CAN interfaces2
1-Wire1 (1-Wire data)
GNSS antennaInternal High Gain
Cellular antennaInternal High Gain
USB2.0 Micro-USB
LED indication3 status LED lights
SIMMicro-SIM + eSIM
Memory128MB internal flash memory
FEATURES
CAN DataFuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position
SensorsAccelerometer
ScenariosGreen Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modesGPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware updateFOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGNSS, NITZ, NTP
Ignition detectionDigital Input 1, Accelerometer, External Power Voltage, Engine RPM
