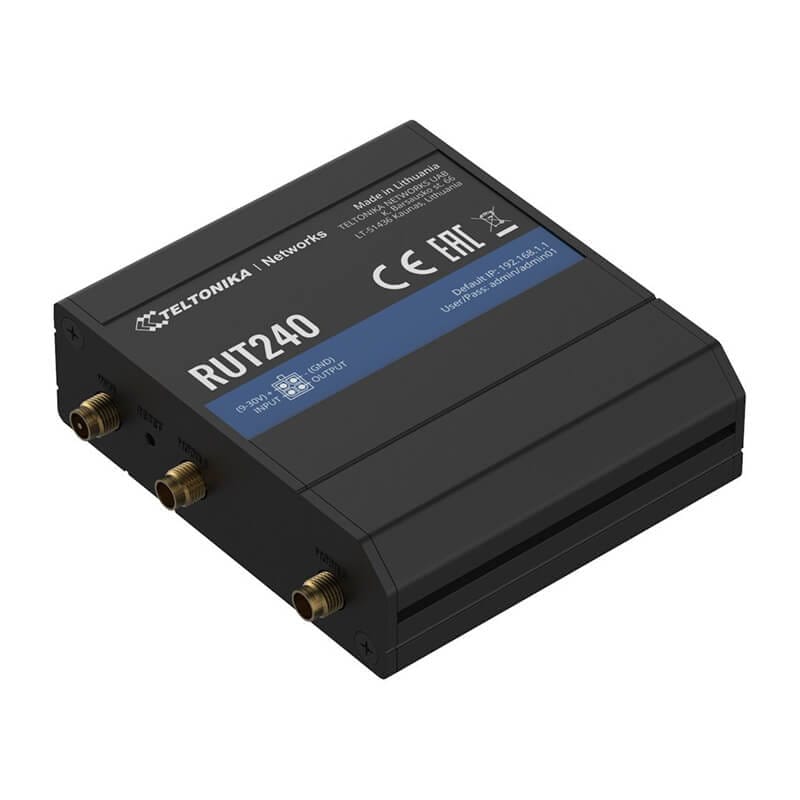

Teltonika RUT240 4G/LTE Wi-Fi Router

Teltonika
Availability:

In Stock

Key features;

  • Connectivity: 4G/LTE (Cat 4), 3G, 2G
  • WAN FAILOVER: Automatic Switching to available Backup connection
  • WiFi: Wireless Access Point with Hotspot functionality
  • Small size – easy integration
  • Digital I/O for remote monitoring & control
  • Compatible with Teltonika Remote Management System
Payment Options

Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
NB: Prices are subject to change without notice

KShs 28,500.00 KShs 35,000.00 VAT exclusive

In Stock

Buy Teltonika RUT240 4G/LTE Wi-Fi Router in Nairobi Kenya

Are you looking for a router with a backup connectivity incase the main connection fails? The Teltonika RUT240 4G/LTE wifi router is an industrial grade router that offers that redundancy for mission critical applications such us CCTV security cameras and other installations.  This router will automatically Switch to available Backup connection incase of failure ensuring guaranteed uptime!  Teltonika RUT240 4G/LTE wifi router is small sized yet very powerful for easy installation and integration in your network.

RUT240 is an all-time bestseller industrial 4G LTE Wi-Fi router for professional M2M & IoT applications. It delivers high performance for mission-critical cellular communication in rigorous environments. RUT240 is widely used for 4G backup, Remote Connection, Advanced VPN, and tunneling services in IoT networking solutions. WAN failover ensures automatic switch to alternative backup connection in case of any connectivity issues. The Wi-Fi is functional in both: Access point and Station mode at the same time.

Categories: , Tags: ,
Brand

Teltonika RUT240 4G/LTE Wi-Fi Router Specs

MOBILE
Mobile module4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
StatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White listOperator black/white list
Band managementBand lock, Used band status display
APNAuto APN
BridgeDirect connection (bridge) between mobile ISP and device on LAN
PassthroughRouter assigns its mobile WAN IP address to another device on LAN
Multiple PDN (optional)Possibility to use different PDNs for multiple network access and services (not available in standard FW)
WIRELESS
Wireless modeIEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi securityWPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSIDSSID stealth mode and access control based on MAC address
WiFi usersUp to 50 simultaneous connections
Wireless HotspotCaptive portal (Hotspot), internal/external Radius server, built in customizable landing page
ETHERNET
WAN1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, RIPng, OSPF6)
Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
FirewallPort forward, traffic rules, custom rules
DHCPStatic and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNSSupported >25 service providers, others can be configured manually
Network backupVRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
Load balancingBalance your internet traffic over multiple WAN connections
SSHFS (optional)Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
AuthenticationPre-shared key, digital certificates, X.509 certificates
FirewallPre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLANPort and tag based VLAN separation
Mobile quota controlSet up custom data limits for the SIM card
WEB filterBlacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access controlFlexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPNMultiple clients and server can be running simultaneously, 12 encryption methods
OpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsecIKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GREGRE tunnel
PPTP, L2TPClient/Server services can run simultaneously
StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs’ code
SSTPSSTP client instance support
ZeroTierZeroTier VPN
WireGuardWireGuard VPN client and server support
MODBUS
MODBUS TCP SLAVE
ID filteringRespond to one ID in range [1;255] or any
Allow Remote AccessAllow access through WAN
Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
MODBUS TCP MASTER
Supported functions01, 02, 03, 04, 05, 06, 15, 16
Supported data formats8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
MODBUS DATA TO SERVER
ProtocolHTTP(S), MQTT, Azure MQTT
MQTT GATEWAY
MQTT gatewayAllows sending commands and receiving data from MODBUS Master through MQTT broker
MONITORING & MANAGEMENT
WEB UIHTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log
FOTAFirmware update from sever, automatic notification
SSHSSH (v1, v2)
SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
CallReboot, Status, WiFi on/off, Mobile data on/off, Output on/off
TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTTMQTT Broker, MQTT publisher
SNMPSNMP (v1, v2, v3), SNMP trap
JSON-RPCManagement API over HTTP/HTTPS
MODBUSMODBUS TCP status/control
RMSTeltonika Remote Management System (RMS)
IoT PLATFORMS
Cloud of ThingsAllows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorxAllows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
CumulocityAllows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT HubCan send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
SYSTEM CHARACTERISTICS
CPUAtheros Hornet, MIPS 24Kc, 400 MHz
RAM64 MB, DDR2
FLASH storage16 MB, SPI Flash
FIRMWARE / CONFIGURATION
WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTAUpdate FW/configuration from server
RMSUpdate FW/configuration for multiple devices
Keep settingsUpdate FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating systemRutOS (OpenWrt based Linux OS)
Supported languagesBusybox shell, Lua, C, C++
Development toolsSDK package with built environment provided
INPUT/OUTPUT
Input1 x Digital input, 0 – 5 V detected as logic low, 8 – 30 V detected as logic high
Output1 x Digital open collector output, max output 30 V, 300 mA
EventsSMS, EMAIL, RMS
POWER
Connector4 pin industrial DC power socket
Input voltage range9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max
PoE (passive)Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt
Power consumption< 6.5 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet2 x RJ45 ports, 10/100 Mbps
I/O’s1 x Digital Input, 1 x Digital Output on 4 pin power connector
Status LEDs3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power1 x 4 pin DC connector
Antennas2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
ResetReboot/Factory reset button
PHYSICAL SPECIFICATION
Casing materialAluminium housing with DIN rail mounting option, plastic panels
Dimensions (W x H x D)83 x 25 x 74 mm
Weight125 g
Mounting optionsBottom and sideways DIN rail mounting slots
OPERATING ENVIRONMENT
Operating temperature-40 °C to 75 °C
Operating humidity10% to 90% non-condensing
Ingress Protection RatingIP30
REGULATORY & TYPE APPROVALS
RegulatoryCE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Certified, CCC, Anatel, GCF, REACH, Thailand NBTC, Ukraine UCRF, SDPPI (POSTEL)
OperatorVerizon, AT&T
VehicleECE R10 (E-mark)
EMI IMMUNITY
StandardsDraft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-52 V1.1.0
FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014)
ESDEN61000-4-2:2009
RSEN 61000-4-3:2006 + A1:2008 + A2:2010
EFTEN 61000-4-4:2012
Surge immunity (AC Power Line)EN 61000-4-5:2006
Surge immunity (Ethernet ports)EN 61000-4-5:2014, clause 7.1 of ITU-T K21
CSEN 61000-4-6:2009
DIPEN 61000-4-11:2004
RF
StandardsEN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1
FCC 47 CFR Part 15C (2017), FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017)
RSS-Gen Issue 4 (2014), RSS-247 Issue 2 (2017), RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-130 Issue 1
AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017
SAFETY
StandardsIEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
AS/NZS 60950.1:2015
EN 50665:2017, EN 62311:2008
FCC 47 CFR Part 1 1.1310
RSS-102 Issue 5 (2015)
