Key features
• 2 x internal antennas for 2.4 GHz WiFi (omnidirectional)
• 1 x RJ45 10/100 Mbps port
• WiFi 2,4 GHz (b/g/n)
• Free RMS Management access for 24 months
• Input voltage range: 44.0 – 57.0 V
• Operating temperature: 40 °C to 75 °C
• Degree of protection: IP30
• Dimensions: Ø 158 mm x 30 mm
• Weight: 190 g
• RAM 64 MB
• CPU 580 MHz
Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information. NB: Prices are subject to change without notice

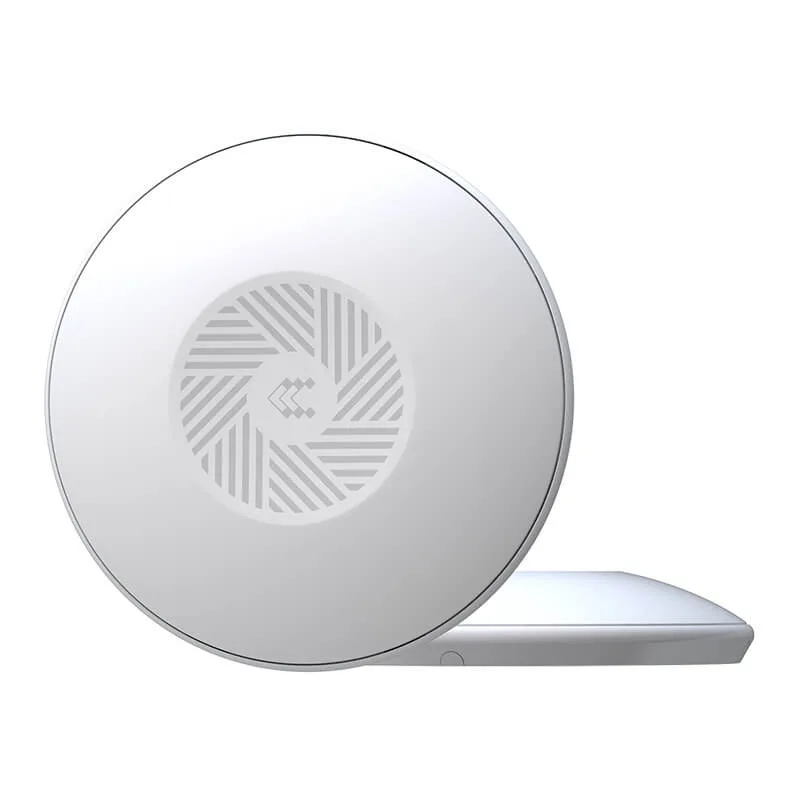

Buy Teltonika TAP100 WiFi Access Point in Nairobi Kenya
Teltonika TAP100 Wi-Fi 4 is Teltonika Networks’ first Access Point (AP) operating on 2.4GHz frequency. It is ideal for strengthening the coverage and sharing the Wi-Fi signal in homes, offices, restaurants, airports, cafeterias, museums, conference halls, smaller production halls, public spaces and other places
WiFi Access Point TAP100 allows devices such as smartphones, laptops, computers, tablets or televisions to connect to the internet without the need of cables. The advantage of the WiFi Access Point TeltonikaTAP100 is the ease of installation and configuration.

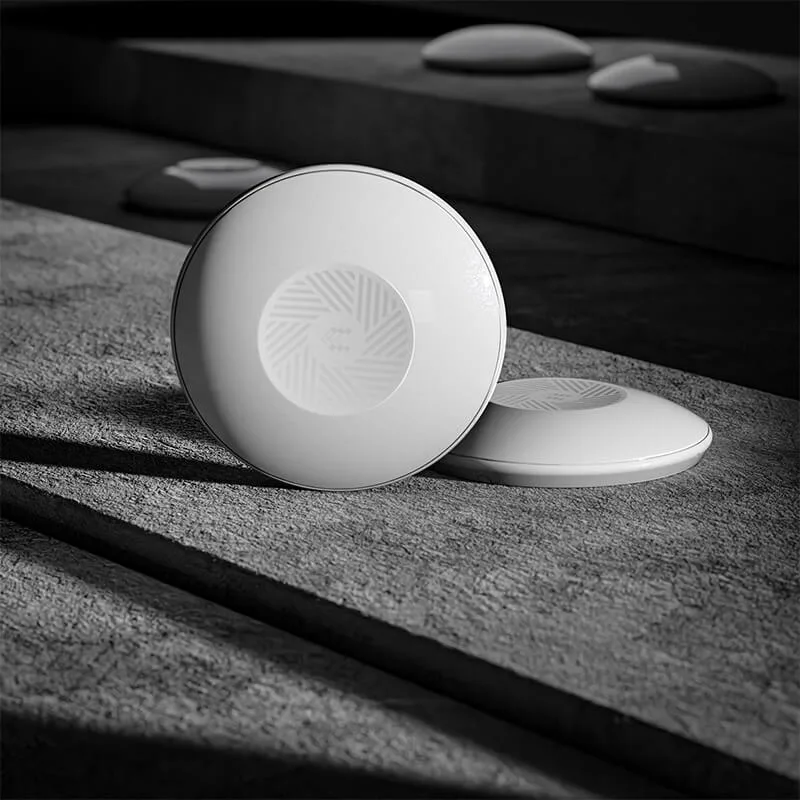

The Teltonika TAP100 Access Point is housed in an elegant plastic casing that is stabilized against UV radiation, so the device will retain its colour even in continuous direct sunlight. An integrated mounting bracket allows an easy installation on the ceiling.
The Teltonika TAP100 Access Point is equipped with 2 internal omnidirectional antennas for 2.4GHz WiFi frequency and with a RJ45 connector for Ethernet connection.
Thanks to the PoE-in function, the Teltonika TAP100 can be powered directly from a connected device that provides it with data connection via Ethernet. This is for devices that support active PoE, such as the Teltonika TSW100 PoE+ industrial switch, or any network device with a PoE injector. In the case that the router does not support PoE, a PoE injector is put between the router and the Access Point. At the same time the PoE injector works as a power source. This eliminates the need for additional power supplies and cables, and also reduces the complexity of the setting.
The 15W PoE Injector is not included in the TAP100 packaging.
With the purchase of the Teltonika TAP100 Access Point, you will get for 24 months free access to the Teltonika Remote Management System (RMS), which allows remote management and monitoring of all Teltonika network devices. The system allows you to change the configuration and collect status information on individual devices, even if the devices do not have public IP addresses.
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Hotspot 2.0
Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
Security
802.1x
Port-based network access control client
Authentication
SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator
VLAN
Tag-based VLAN separation
DATA TO SERVER
Protocol
HTTP(S), MQTT, Azure MQTT, Kinesis
Data to server
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature
API
Teltonika Networks Web API (beta) support
Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
Email
Receive email message status alerts of various services
JSON-RPC
Management API over HTTP/HTTPS
RMS
Teltonika Remote Management System (RMS)
System Characteristics
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
64 MB, DDR2
FLASH storage
16 MB, SPI Flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration
FIRMWARE CUSTOMISATION
Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager
The Package Manager is a service used to install additional software on the device
Power
Connector
RJ45 Socket
Input voltage range
44.0 – 57.0 V
PoE standards
802.3af PoE Class 1
Power consumption
< 2 W Max
Physical Interfaces
Ethernet
1 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Power LED (can be turned off from web-UI)
Antennas
2 x Internal for 2.4 GHz Wi-Fi
Antennas specifications
2 x 2400 – 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional
