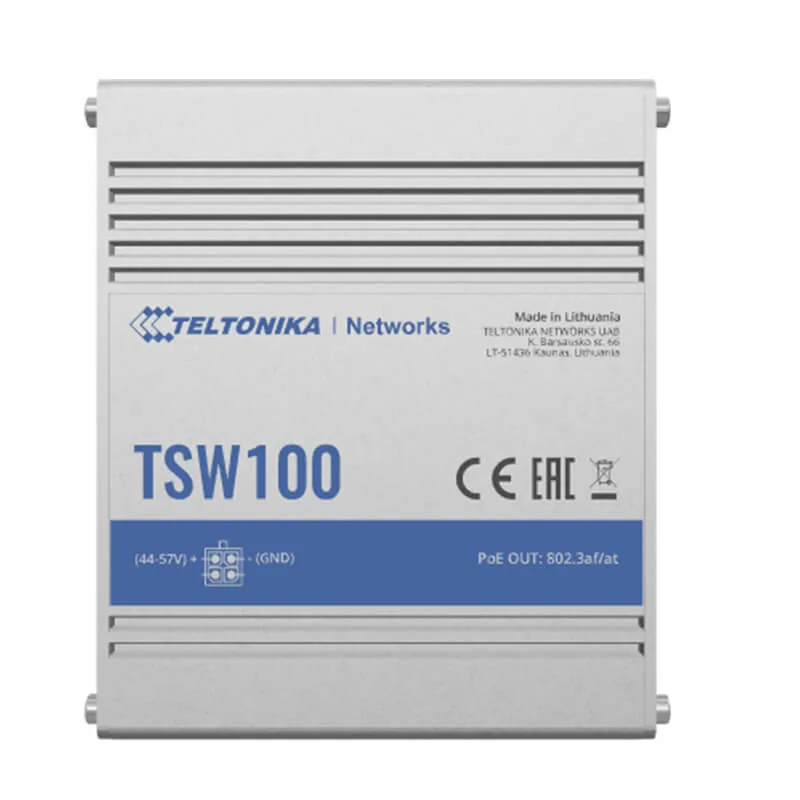

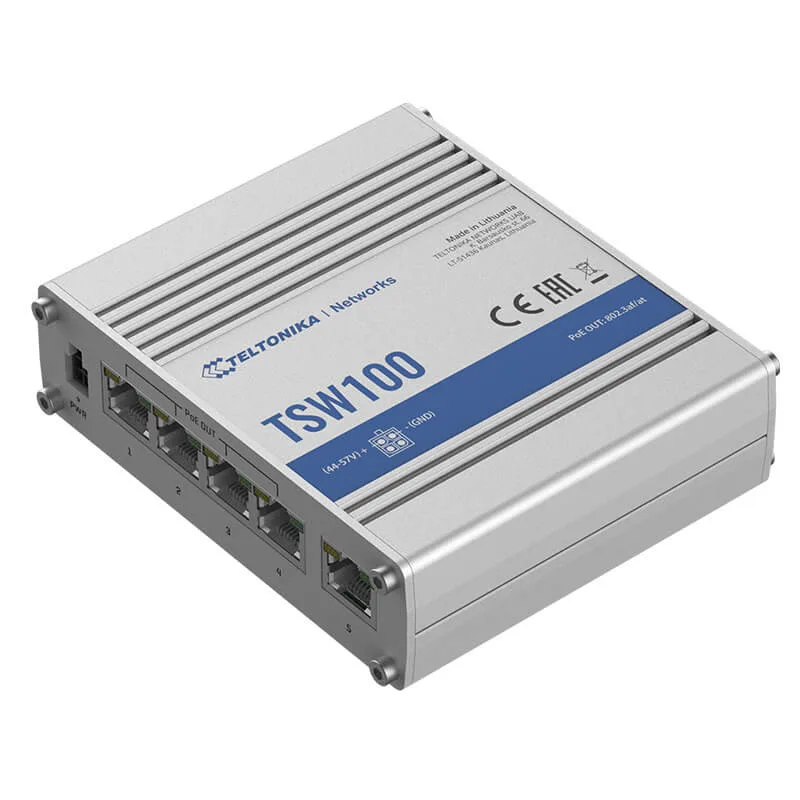

Teltonika TSW100 Industrial Unmanaged POE+ Switch

Teltonika
Availability:

In Stock


Key Features;

  • 4 x PoE+ ports with 802.3af and 802.3at support
  • 5 x Gigabit Ethernet with speeds up to 1000 Mbps
  • Rugged aluminium housing
  • Plug-n-Play; No configuration needed
  • Easy Mounting; DIN rail and surface mounting options
  • Total power budget at PSE up to 120 W
Payment Options

Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
NB: Prices are subject to change without notice

KShs 17,500.00 KShs 20,000.00 VAT exclusive

In Stock

Buy Teltonika TSW100 Industrial Unmanaged POE+ Switch in Nairobi Kenya

TSW100 is the first industrial unmanaged switch from Teltonika Networks. It is Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE). Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution. Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.

Teltonika Teltonika Networks products are designed by the brightest minds in the industry. Each and every device manufactured by Teltonika Networks is 100% tested before reaching the client.

Brand

Teltonika TSW100 Specifications

ETHERNET
LAN5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
POE
PoE portsPort 1- 4
PoE standards802.3af and 802.3at
PoE Max Power per Port (at PSE)30 W
Total PoE Power Budget (at PSE)120 W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)10 Gbps
Packet buffer128 KB
MAC address table size2K entries
POWER
Connector4-pin industrial DC power socket
Input voltage range7-57 VDC
Input voltage range for PoE44-57 VDC
Power consumptionIdle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs1 x Power LED, 10 x LAN status LEDs
Power1 x 4-pin DC connector
Ground1 x Grounding screw
PHYSICAL SPECIFICATION
Casing materialFull aluminum housing
Dimensions (W x H x D)115 x 32 x 95 mm
Weight350 g
MountingDIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature-40 °C to +75 °C
Operating humidity10 % to 90 % non condensing
