• 2 x SPF ports to connect optical cables
• 8 x Gigabit Ethernet with speeds up to 1000 Mbps
• Degree of protection: IP30
• Operating temperature: -40 °C to 75 °C
• Aluminum housing with the possibility of mounting on a wall or on a DIN rail
• Rugged aluminum housing for extreme temperatures and vibration resistance
• Dimensions: 132 x 44.2 x 122.2 mm
• Weight: 615 g
Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information. NB: Prices are subject to change without notice
Buy Teltonika TSW212 Industrial Managed Gigabit Switch in Nairobi Kenya
The Teltonika TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.

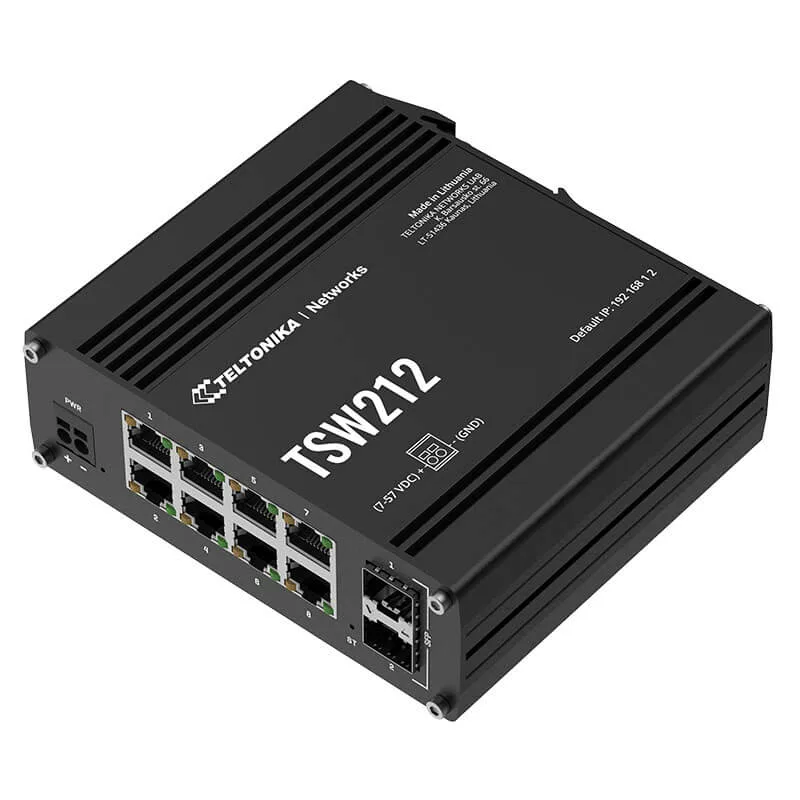

The Teltonika TSW212 switch is equipped with 8 gigabit Ethernet and 2 powerful SFP ports that enable communication over optical lines.
Teltonika TSW212 supports remote management via RMS (Teltonika Remote Management System), SNMP or Telnet protocols. You can monitor and control your equipment from anywhere with a centralized management system.
This advanced switch acts as a central connection hub for various devices in a network. It provides extensive network management capabilities, including support for various industry standards such as EtherNet/IP, PROFINET and MRP. With 8 Gigabit Ethernet ports and 2 SFP ports, it guarantees reliable communication both over standard cables and over long distances via fiber.

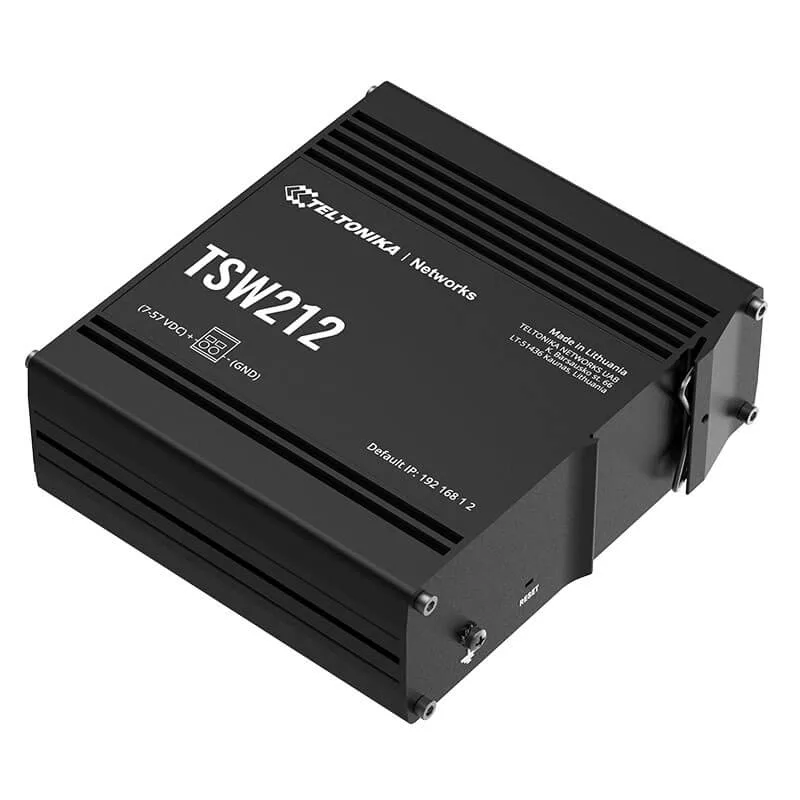

What sets this device apart is its robust construction. Housed in sturdy aluminum, the TSW212 can withstand extreme conditions such as temperature variations and vibration. Moreover, the installation is effortless thanks to the integrated DIN rail mounting, making it suitable for various working environments and installation requirements.
Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method
SP/WFQ/WRR
Bandwidth control
Rate limiting, storm control
Traffic Shaper
Port-based shaping
Diagnostics
Tools
Cable diagnostic, ping, traceroute, nslookup
API
Teltonika Networks Web API (beta) support
Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
System Characteristics
RAM
128MB, DDR3
FLASH storage
16 MB serial flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
FIRMWARE CUSTOMISATION
Operating system
TSWOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
Performance Specifications
Bandwidth (Non-blocking)
20 Gbps
Forwarding rate
14.88 Mpps
Packet buffer
512 KB
MAC address table size
8K entries
Jumbo frame support
10000 bytes
Power
Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC
Power consumption
Idle: < 2.5 W / Max: 6 W

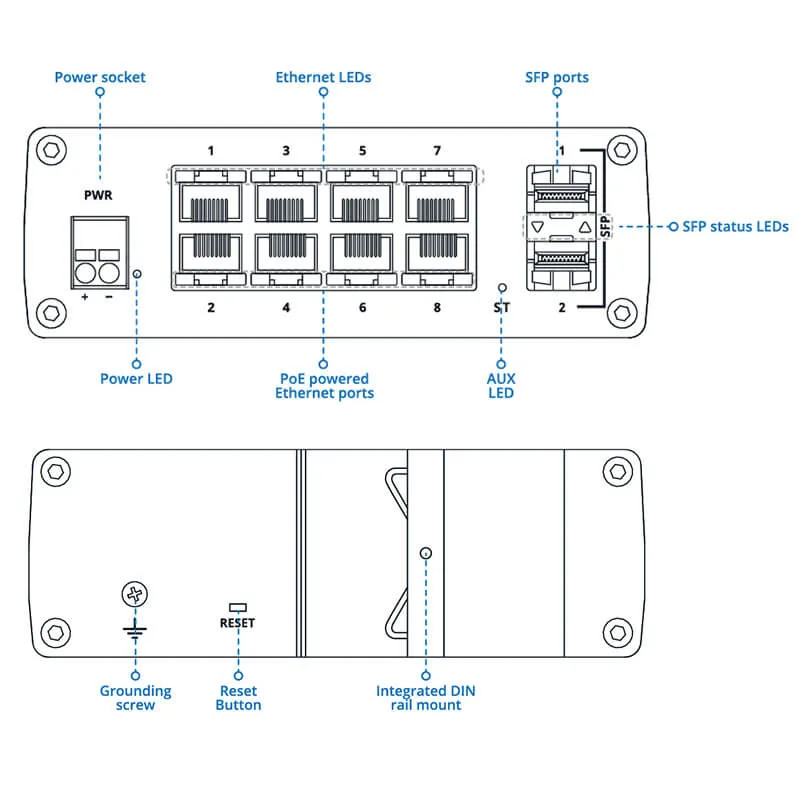

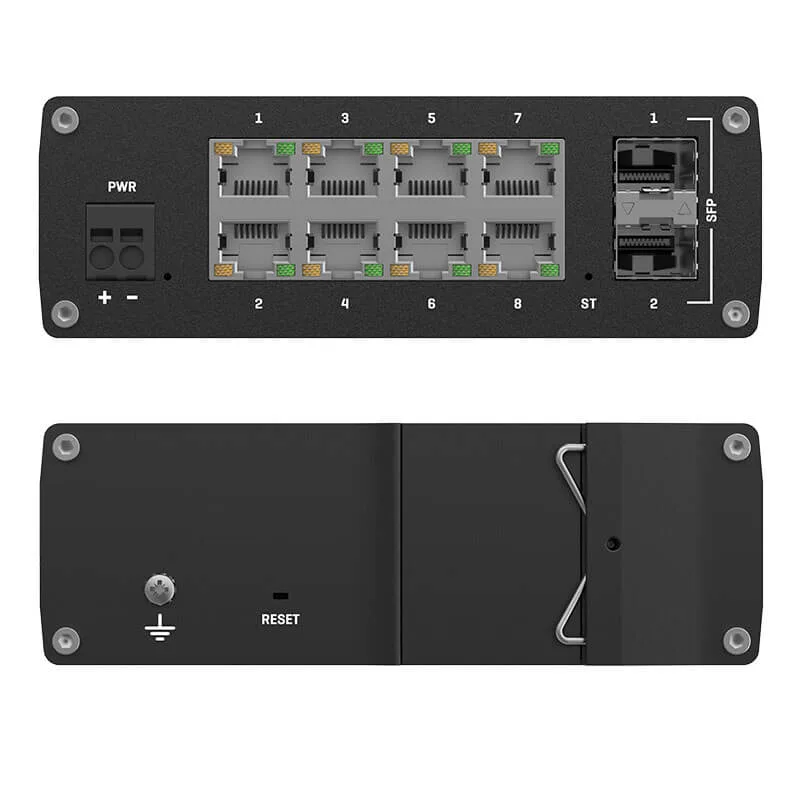

Physical Interfaces
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
2 x SFP ports
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket
Reset
Software reset button
Other
1 x Grounding screw
Physical Specification
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
132 x 44.2 x 122.2 mm
Weight
615 g
Mounting options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
